The Visual Weld Illusion: Why Surface Examination Cannot Certify Structural Steel Connections in High-End Residential Con...

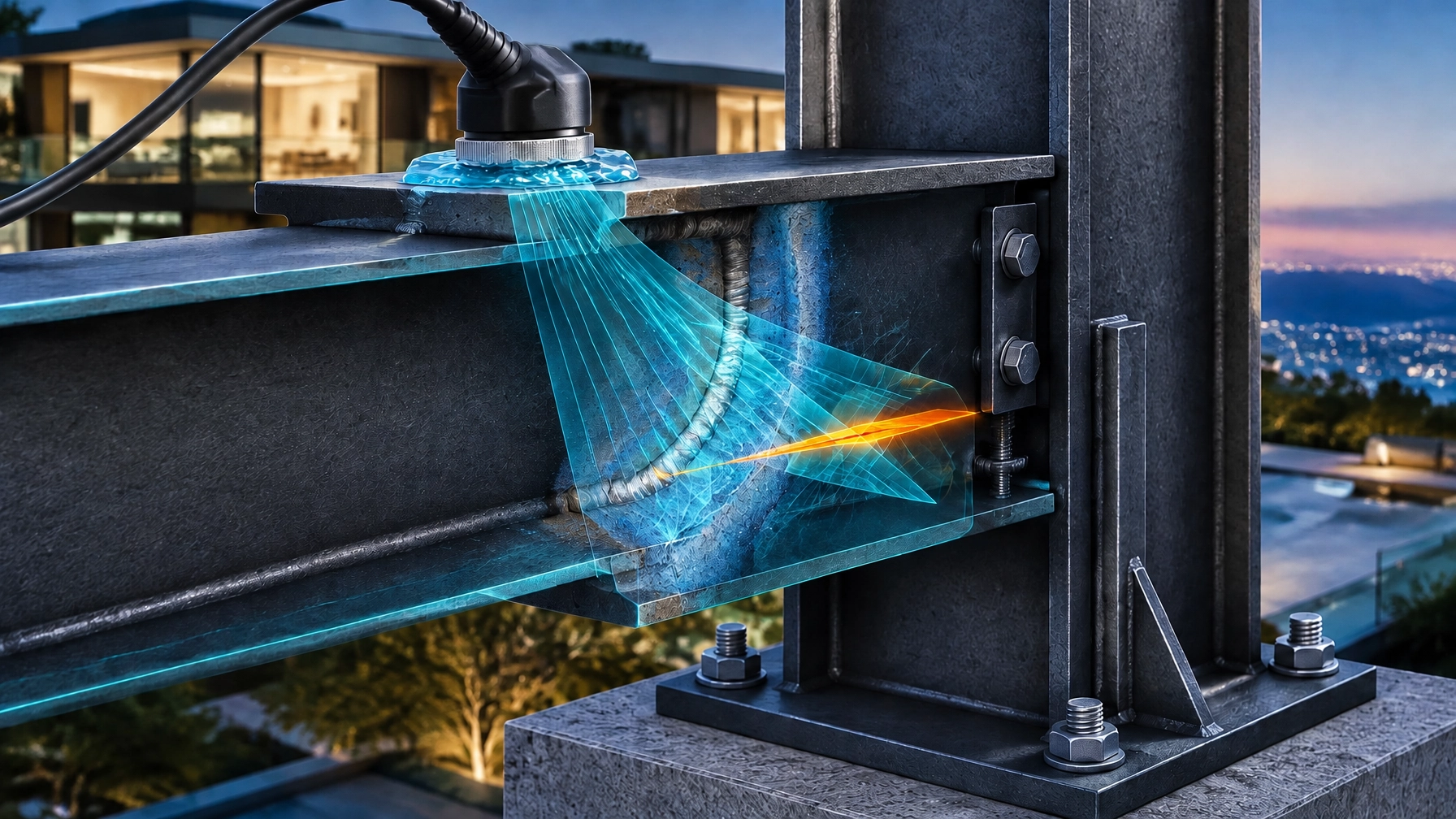

⚠️ The image in this post is used for illustration purposes only, designed to encourage thoughtful discussion. It is not intended to represent a prescriptive detail of any installation or construction method.
In high-end residential construction, welded steel is increasingly exposed, architecturally integrated and structurally consequential.
Moment frames, cantilevered balconies, carport beams, stair stringer brackets, balustrade supports and concealed connection plates are frequently welded on site. The finished work may be visible from a living room, entry foyer or external terrace. When the weld profile appears neat, continuous and professionally dressed, the connection is often accepted on the strength of a visual pass.
That is the visual weld illusion.
Visual examination is essential. It is also limited. Correctly performed, it can identify visible cracks, surface-breaking discontinuities, profile irregularities, undercut, overlap, poor contour, arc strikes and other external conditions. It cannot certify what is concealed below the surface.
A visual examination cannot reliably detect:
The governance failure occurs when a surface observation is treated as proof of internal structural quality.
The contractor has a commercial incentive to close out the steel, apply coatings and release the work to following trades. The owner, designer, lender and future purchaser require a defensible record that demonstrates what was welded, by whom, under which qualified procedure, with what controls and using which examination method.
Those interests are not automatically aligned.
A Welding Procedure Specification may exist in the project file. A Procedure Qualification Record may also be present. That does not establish that the installed weld was produced within the qualified envelope.
The actual joint may have been made:
A document is not evidence of application. It is evidence only that a document exists.
The forensic question is whether the installed connection can be traced back to the applicable qualified procedure, qualified welder, approved material and controlled production record.
Preheat and interpass temperature control are not administrative details. They influence cooling rate, fusion quality, hydrogen mobility, residual stress and crack susceptibility.
When temperatures are unrecorded or uncontrolled, the connection may pass visual examination and develop hydrogen-assisted cold cracking days or weeks later. The crack may initiate within the weld metal or heat-affected zone and remain invisible until the connection is loaded, distorted or exposed to cyclic movement.
The absence of a temperature record does not prove that temperatures were wrong. It proves that the control cannot be demonstrated.
AWS D1.1 requires production welding to operate within defined procedure requirements. The governing record should show how those requirements were verified, not merely assume compliance from the final appearance.
Surface methods and volumetric methods answer different questions.
Visual examination, liquid penetrant testing and magnetic particle testing are primarily surface or near-surface techniques. They can be valuable for detecting surface-breaking cracks and discontinuities when the material, geometry and method are suitable.
They cannot replace ultrasonic or radiographic examination where the design intent, contract documents or applicable welding code require volumetric verification.
This distinction is critical for complete joint penetration groove welds, highly stressed moment connections and seismic force-resisting applications. A visually satisfactory cap can conceal a planar lack-of-fusion defect at a fusion face or root. A surface method may show nothing because the defect does not break through to the surface.
Select the method from the structural risk and joint configuration. Do not select it merely because it is faster, cheaper or easier to perform after the steel has been coated.
Weld examination must occur at the correct stage.
If the steel is inspected after galvanizing, priming, fire protection or intumescent coating, the examiner may be recording a coated surface rather than the weld condition that existed immediately after fabrication. Coating can conceal surface-breaking discontinuities, prevent direct examination and complicate interpretation of indications.
Progressive inspection before coating provides a more defensible sequence:
A single-visit sign-off after coatings are applied compresses these decisions into a point where the evidence is weakest.
⚠️ The image in this post is used for illustration purposes only, designed to encourage thoughtful discussion. It is not intended to represent a prescriptive detail of any installation or construction method.
A repair weld is not a minor cosmetic correction. It changes the thermal history and may alter the heat-affected zone, residual stress state, geometry and local material condition.
Common failure patterns include:
The repaired connection must be treated as a new acceptance event. Establish the repair method, verify defect removal, control the repair weld and apply the required examination again.
Architecturally exposed structural steel creates additional pressure to grind, dress and blend welds. That may improve appearance. It may also reduce weld throat, remove reinforcement, alter the transition profile or conceal evidence needed for examination.
Aesthetic requirements are not structural acceptance criteria.
The visual quality expected for exposed steel must be coordinated with the structural welding requirements. A smooth finish does not demonstrate complete fusion. A dressed weld does not prove adequate throat. An attractive connection may carry less evidence than an untreated connection that was correctly documented and examined.
The same distinction applies to flame straightening and forced alignment. If distortion or fit-up is corrected after welding, document the method, temperature control, resulting geometry and engineering assessment. Do not assume that the original connection stiffness remains unchanged.
AWS D1.1/D1.1M, Structural Welding Code, Steel establishes requirements for procedure qualification, welder qualification, fabrication, inspection and acceptance of structural steel welds.
Use the standard as a governance framework, not as a visual checklist. Visual examination is a baseline control. It does not automatically satisfy volumetric examination requirements for specified joint categories.
Where seismic force-resisting systems are involved, coordinate AWS D1.8/D1.8M, Structural Welding Code, Seismic Supplement with AWS D1.1. For thin structural sheet steel, assess whether AWS D1.3/D1.3M applies.
For method selection and execution, use the applicable international references, including:
These references do not eliminate the need to define project-specific acceptance criteria. They provide the technical structure for matching examination method, extent, timing, personnel competence and reporting to the connection risk.
Require the following before structural steel is released for coating or concealment.
Check that the WPS and supporting qualification records cover the actual:
Confirm that every welder is qualified for the work actually performed.
Do not defer the entire audit to practical completion. Engage independent verification at defined hold points:
Specify visual examination for all applicable welds, then determine whether liquid penetrant, magnetic particle, ultrasonic or radiographic examination is required.
For critical complete joint penetration connections, do not allow a surface-only pass to substitute for the required volumetric method.
Record the weld identification, location, welder, procedure, examination method, examiner, date, indication disposition, repair history and final result.
Link the record to drawings and connection schedules. A report that cannot identify the examined weld is not a defensible structural record.
Create a formal pre-coating release. No primer, galvanizing, fire protection or intumescent coating should proceed until the required examination is complete and accepted.
This is where independent, progressive auditing exposes risk. A single post-coating sign-off often conceals it.
Shoal Bay Projects operates as the forensic advisory bridge between site execution, design intent, compliance evidence and contractual risk. The objective is not to create inspection theatre. It is to ensure that the connection accepted in the record is the connection that was actually fabricated, examined, repaired if necessary and released.
A visually clean weld with no examination record is an assumption.
A qualified, traceable and correctly examined weld is evidence.
